Silent Protector sound absorption wall panels are your best defense to absorb unwanted noise
Roads. Railways. Transformers. Generators. Rooftop Units.
Our Silent Protector (Absorptive) Sound Barrier Wall systems are designed to meet the demands of today’s projects. Great for both ground and structure mounts, Silent Protector Sound Barrier Wall Systems from AIL Sound Walls are lightweight and engineered to deliver excellent sound mitigation.
One of the industry’s top-performing sound barriers

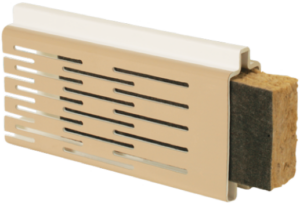

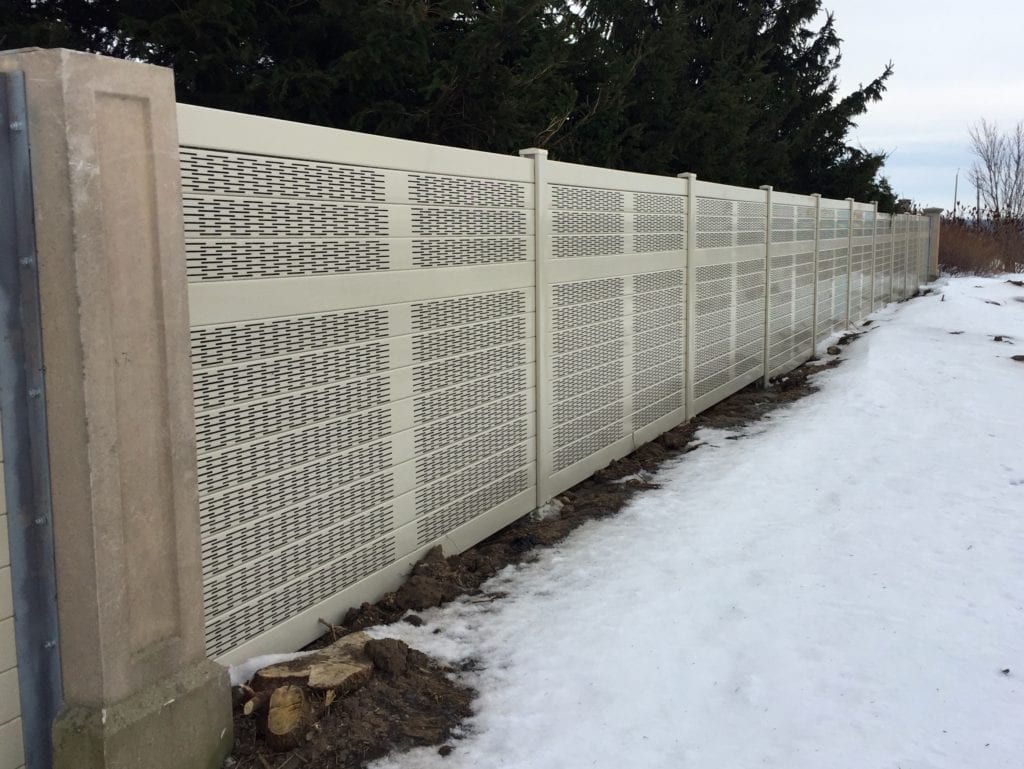

The Silent Protector sound absorption wall panels are engineered for maximum noise reduction. Made from recycled and recyclable perforated PVC panels and filled with acoustical mineral wool, Silent Protector is one of the industry’s top-performing sound walls, with a Sound Transmission Class (STC) rating of up to 39 and a Noise Reduction Coefficient (NRC) of 0.95. See product specifications >>

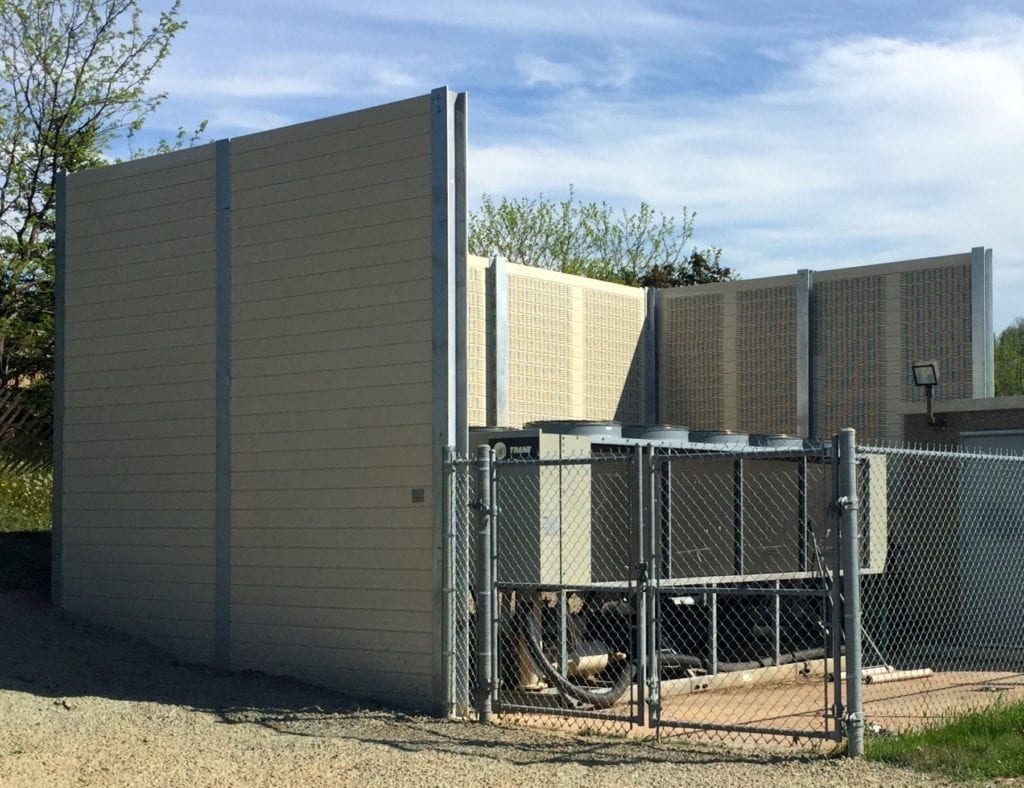

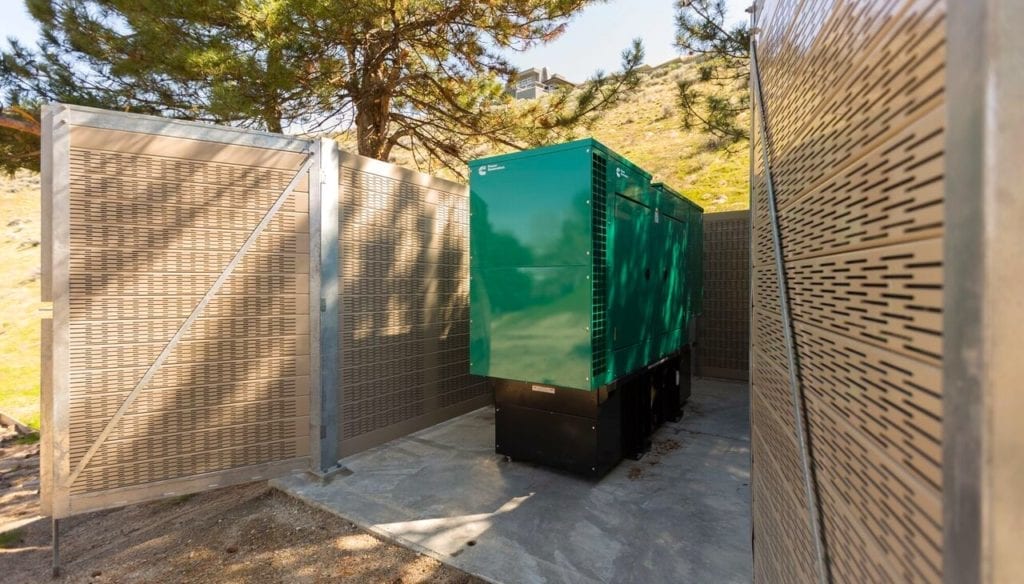

Absorptive sound mitigation for generator enclosures and other applications
With their easy-to-install panels and construction versatility in small spaces, Silent Protector is the go-to sound barrier solution for the toughest sound mitigation jobs, such as railway noise barrier fences and noisy generator surrounds or other equipment surrounds.

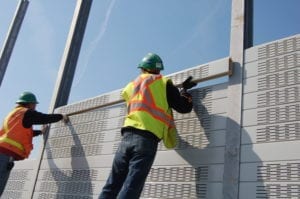

Easy to install with local crews and reduced need for lifting equipment

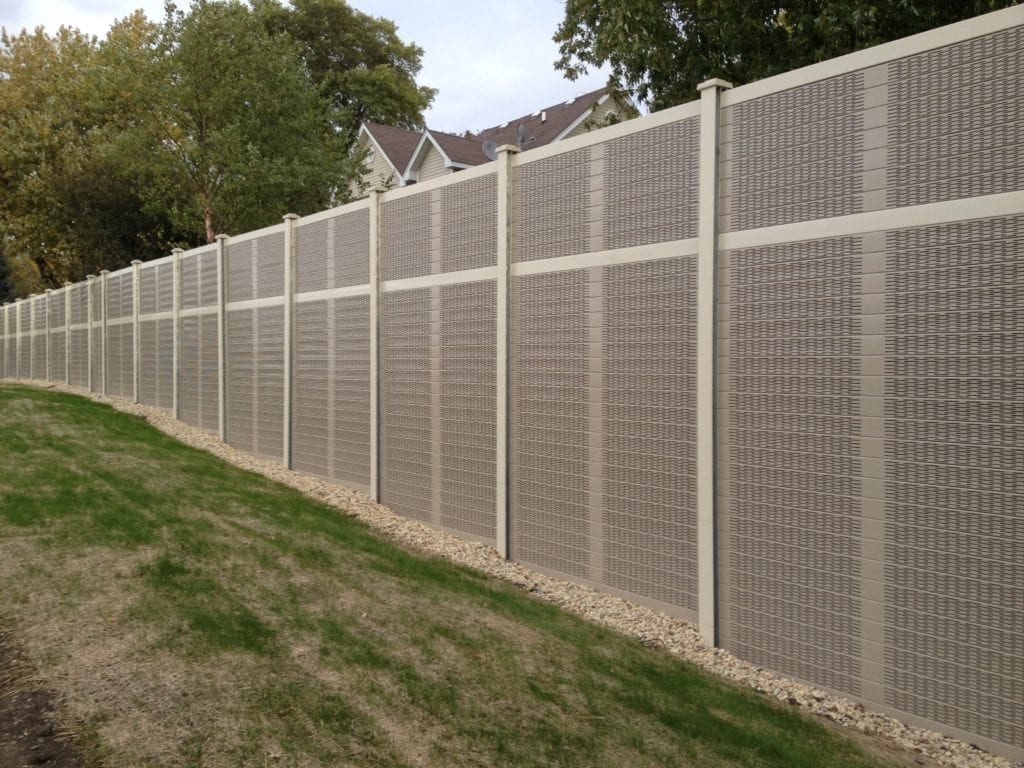

AIL Sound Walls are constructed with tongue and groove PVC panels. Panels are stacked and placed within standard steel posts to the required height and capped with a top panel. A standard panel is 10 ft. (3.0 m) in length and weighs only 21 lbs. (9.5 kg). See how easy AIL Sound Walls install on a variety of footing types in our Installation Video >>.

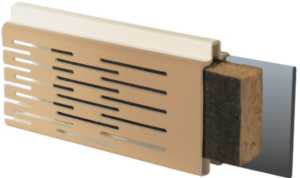

Silent Protector XL — going the distance for better value
Silent Protector XL can reach lengths of 12′, 14′ or 16′ between posts which means fewer posts and foundations for even lower installed costs. With this XL product innovation, we can design our Silent Protector and Silent Protector Plus sound barrier walls with longer spans for all types of wind conditions — even hurricane zones. Ask your AIL Sound Walls Representative about putting this product innovation to work for your better bottom line.
Sound barrier walls in a variety of colors and textures
AIL Sound Walls are available in a variety of attractive colors and textures in both Standard and Upgraded finish levels. Custom colors are also available. Color reproduction on this website is subject to limitations of a number of variables, including your viewing device. Please ask for actual PVC color samples.
Gray
Adobe
Tan
White
Honey Maple
NEW
Green Teak
NEW
Add an optional embossed woodgrain texture to any flat color.
Full and partial transparent panels available
Reduce the tunnel effect and allow more natural light onto roadways or properties by incorporating clear reflective panels into your design.
RESOURCES & VIDEOS
-
AIL Sound Walls Brochure
12-page, full-colour brochure outlining our Silent Protector and Tuf-Barrier Sound Wall Systems applications and specifications.
Download(6.16 MB)
-
AIL Sound Walls Finish Levels Brochure
This two-page sheet details the variety of colors, woodgrain textures and options available with AIL Sound Walls' Standard and Upgraded Finish Levels.
Download(411.36 KB)
-
AIL Sound Walls Installation Video
Video details easy installation of lightweight AIL Sound Wall PVC sound barrier system including footing types, I-beam posts, panels and post covers/caps.
-
Electrical substation sound barrier wall, Saint John, NB
AIL Sound Walls' equipment surround noise barrier wall quiets Saint John Energy’s new electrical substation on Paradise Row.
-

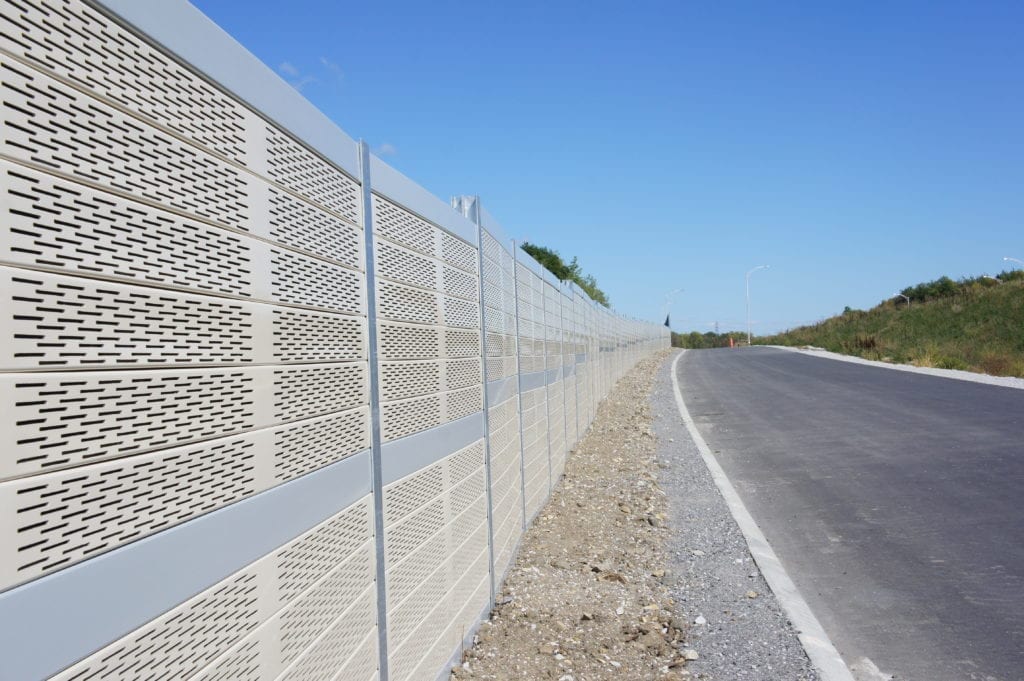

Highway interchange sound barrier wall, St. John's, NL
Take a 360° drone video tour of this Silent Protector (Absorptive) sound barrier wall that protects Canada Drive residents against unwanted traffic noise from an adjacent highway interchange.
-

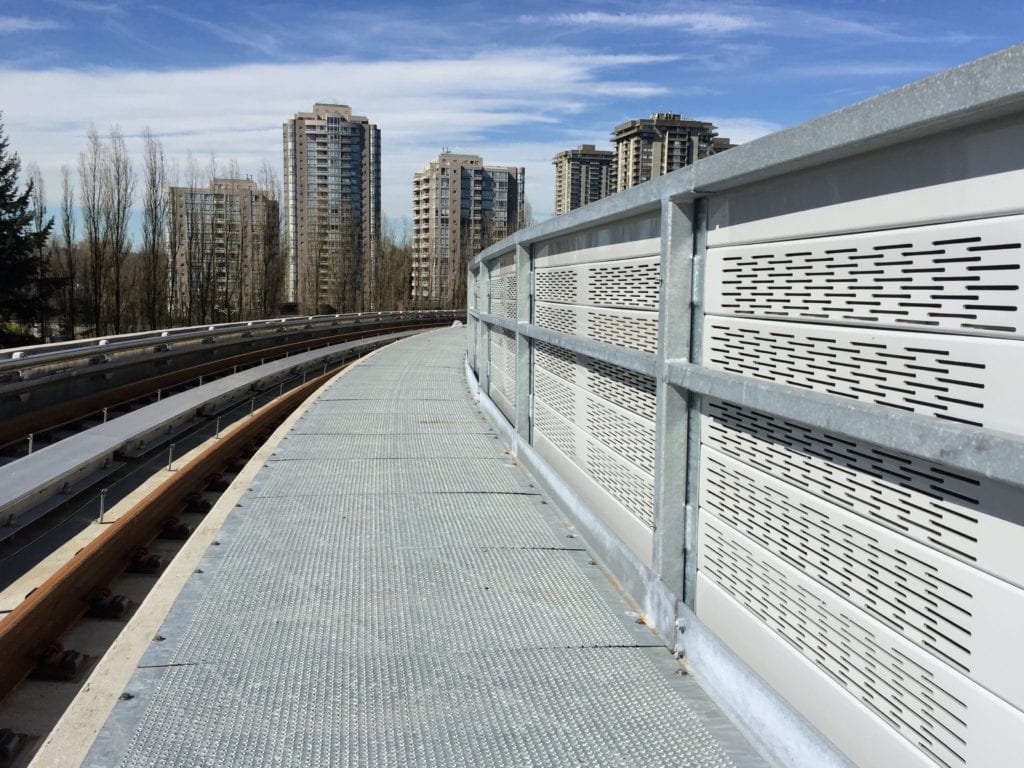

Klahanie Railway Noise Barrier Wall, Port Moody, BC
This short drone video offers a closer look at this Silent Protector absorptive railway noise barrier wall from AIL Sound Walls as it protects residents from unwanted noise for the Evergreen LRT Line in Port Moody, BC.
